TH Clip 760

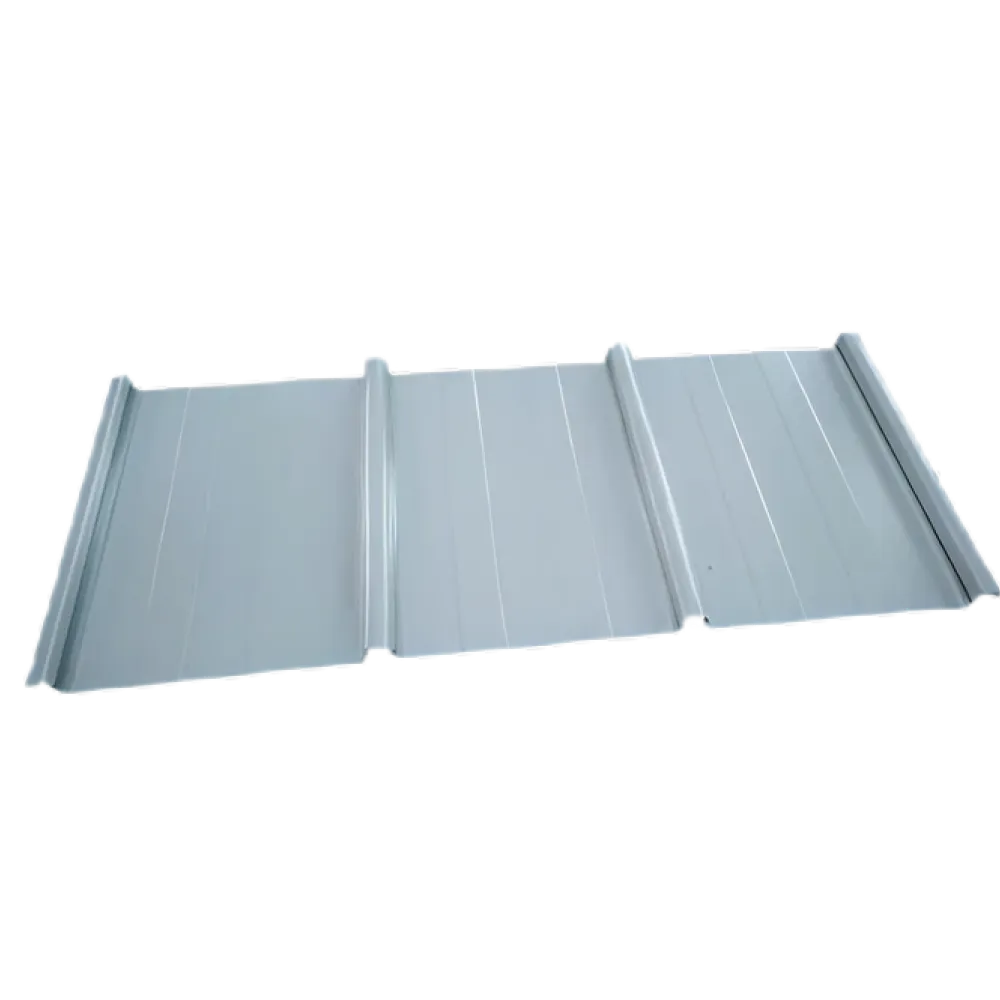

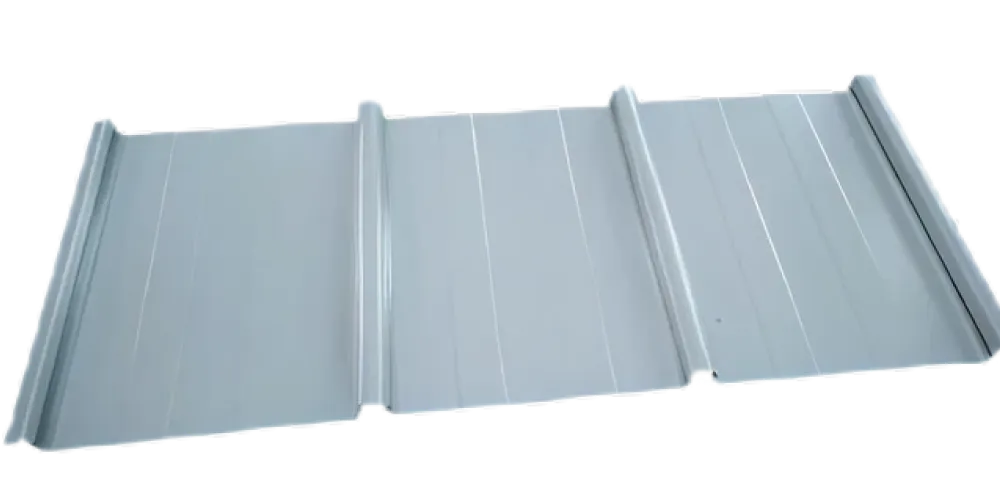

TH Clip 760 is a premium long-length concealed fixing metal roofing system engineered for superior weather protection, structural performance, and modern architectural appeal. Featuring a smart fluted profile with lock-action ribs, the system eliminates exposed fasteners to deliver a clean, seamless roof appearance while enhancing water tightness and durability. Manufactured from high-tensile steel with advanced corrosion protection, TH Clip 760 is suitable for residential and commercial projects requiring long-span capability and long-term reliability.
- Long-length high tensile metal roofing system
- Minimum roof pitch of 3°

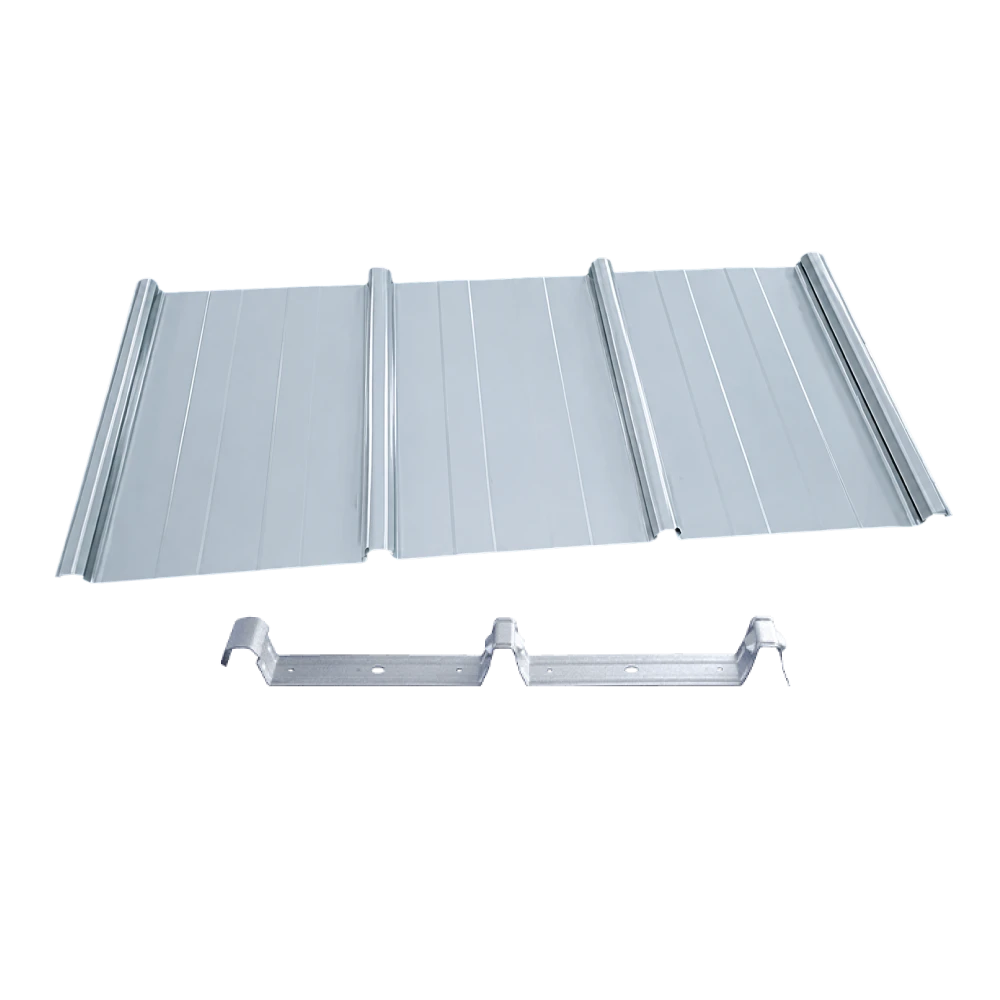

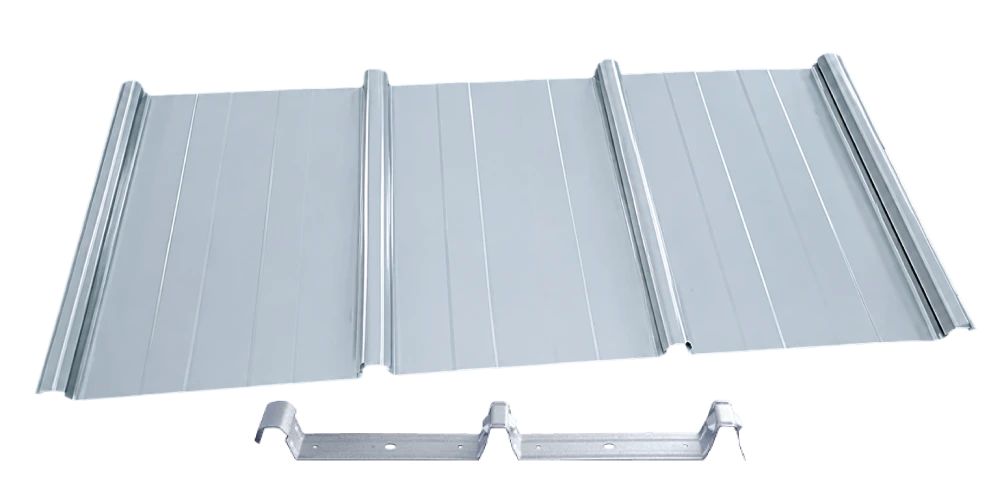

- Concealed fixing clip-lock installation

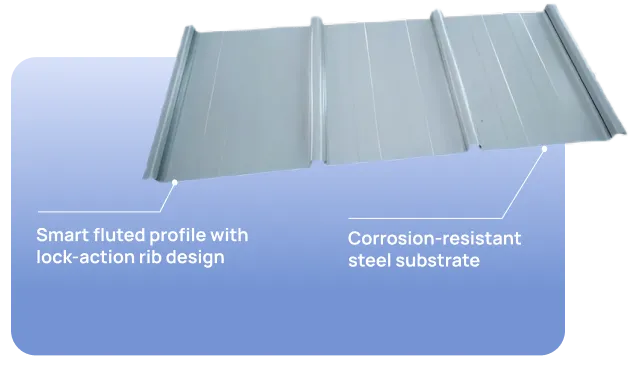

- Smart fluted profile with lock-action rib design
- Clean and modern architectural appearance
Premium Concealed Fix Roofing for Modern Architectural Performance
TH Clip 760 combines innovative concealed fixing technology with high-strength steel construction to deliver exceptional durability, weather resistance, and aesthetic appeal. Its lock-action rib design provides secure installation and superior protection against water ingress, while the clean fastener-free appearance makes it an ideal roofing solution for residential, commercial, and architectural developments seeking both performance and design excellence.

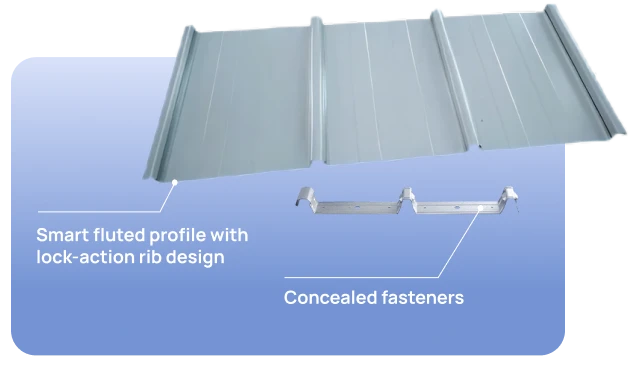

The clip-lock system eliminates visible screws and fasteners, creating a sleek, modern roof profile with a clean architectural finish.
The interlocking rib design enhances water tightness and helps minimise leakage risks, even in challenging weather conditions.
Backed by a 30-year warranty (T&C apply), offering long-term peace of mind and structural reliability.
Advanced Concealed Fix Technology
Unlike conventional exposed-fastener roofing systems, TH Clip 760 uses concealed clips and a locking rib mechanism to secure panels without visible fixings, improving aesthetics and reducing potential leak points.
Designed for Low Roof Pitch Applications
With a minimum roof pitch requirement of only 3°, the TH Clip 760 is ideal for contemporary low-slope roofing designs with efficient water runoff.
Long-Term Durability and Corrosion Resistance
Manufactured from high-tensile steel, it combines excellent spanning capability with efficient installation and reduced support requirements.
Quality Assured
Driven by visionary leadership and an unwavering commitment to quality, Thung Hing has consistently pushed the boundaries of innovation in the construction industry. Our dedication to delivering exceptional products and services has earned us numerous accolades, solidifying our position as a market leader.
Specifications
Dimension Details
Tolerance
Thickness of material
Effective width
Finishing length
: ± 0.03mm
: ± 3mm
: ± 5mm

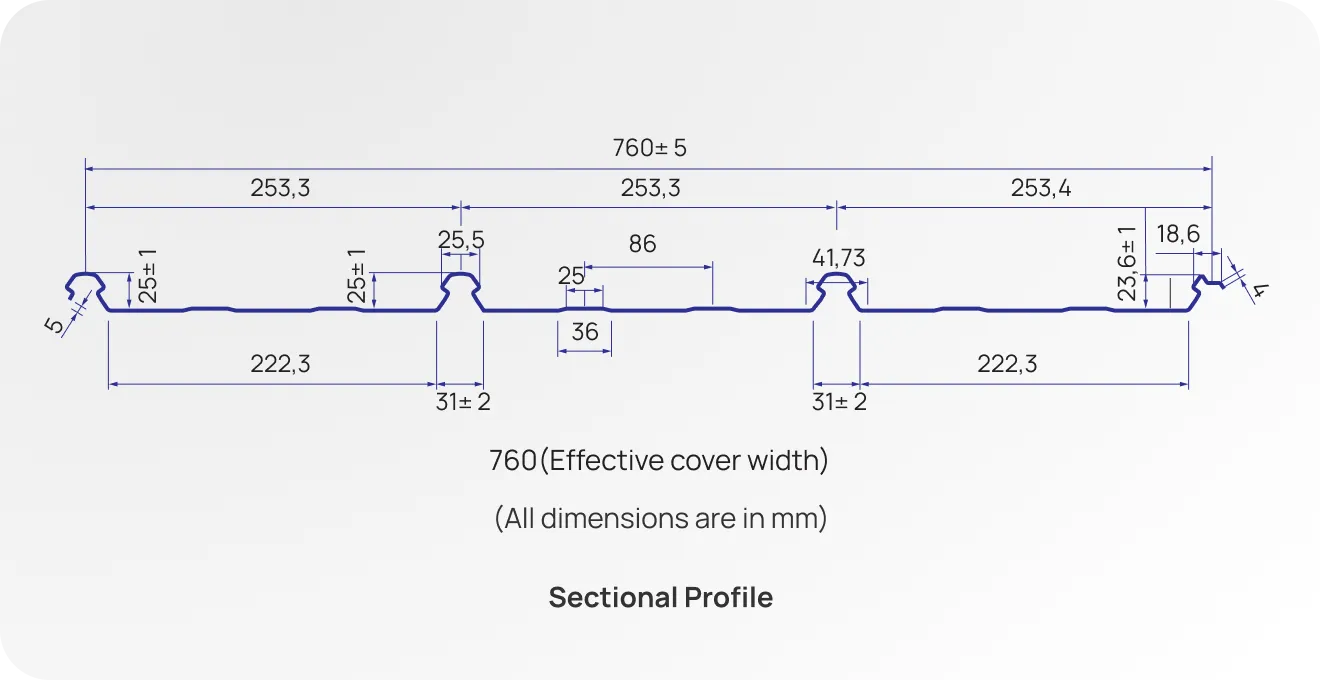

Dimension
Rib height
Effective cover
Minimum roof pitch
: 25mm
: 760mm
: 3°
Download TH Metal Roofing Catalogue
